THERMAL EAVES BATT - Masonry Frame

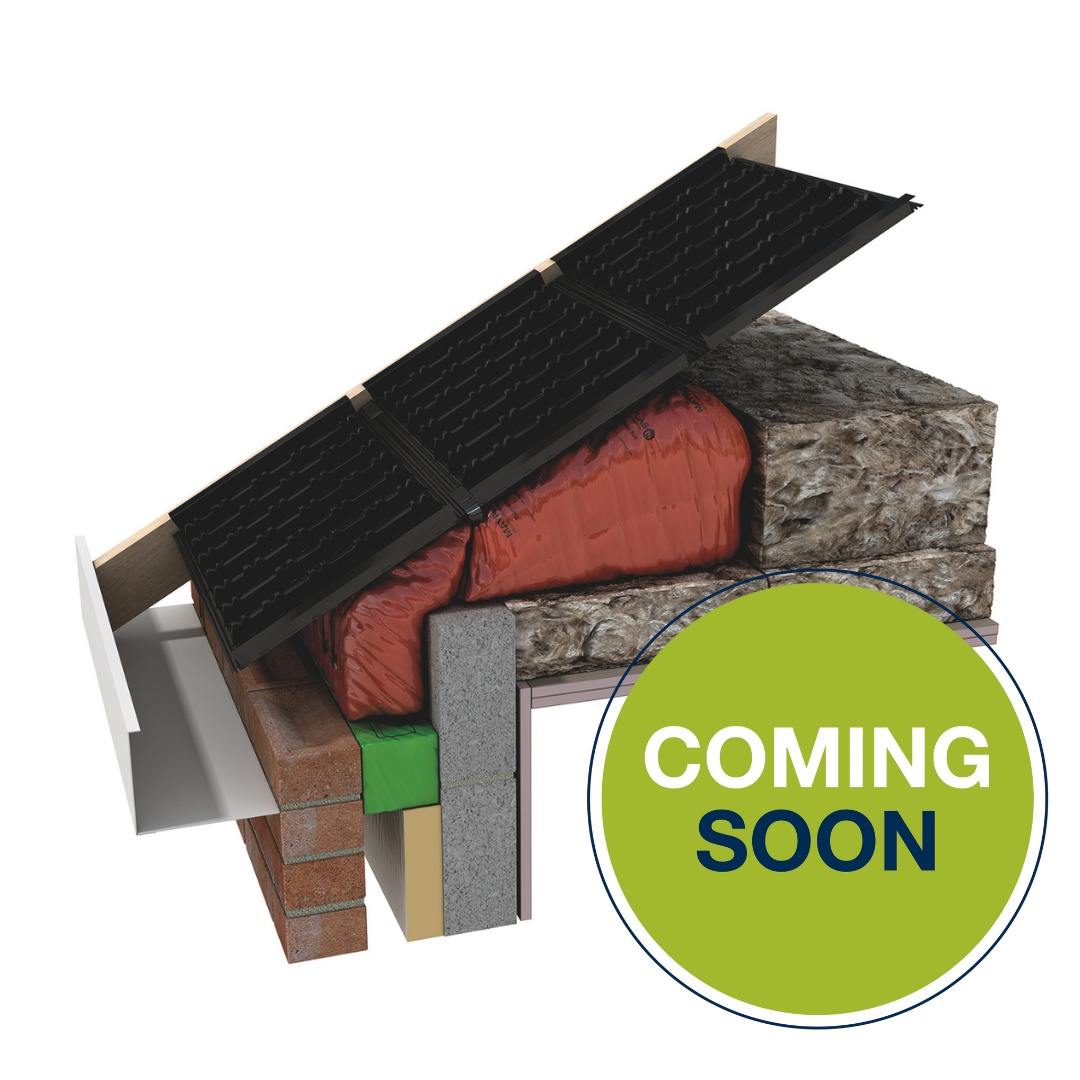

THERMAL EAVES BATT is intended to provide a thermal barrier at the interface between the ceiling loft space and the external wall for both masonry and timber frame new build applications.


ENQUIRE NOW

DOWNLOAD COMBINED TECHNICAL DATA SHEET & INSTALLATION GUIDE

DESCRIPTION


Thermal Eaves Batt is intended to provide a thermal barrier at the interface between the ceiling loft space and the external wall for both masonry and timber
frame new build applications.

Thermal Eaves Batt comprises of 2 main components:
1: Eaves tray

2: Brown polythene enclosed stone mineral wool insulation batt

These are held together by a plastic band which should not be removed

Specification

  • The standard product has a 900mm eaves tray length
    • There are 3 corrugated sections within the tray
    • The first 2 corrugated sections (600mm) are readily seen
    • An additional 300mm eaves tray is tucked under the second section
    • The additional section provides further support for the Thermal Eaves Batt, especially with low roof pitches
  • Fits 600mm rafters
  • Maximum loft Insulation thickness: 300-500mm
  • Suitable for up to 45° roof pitches

Features & Benefits

FeatureBenefits
Enclosed thermal insulation battPrevents cold spots at the eaves and reduces heat loss
Helps provide a clear air
path between the roofing
membrane and attic
insulation
Ventilation is key to prevent
condensation in an attic space
by removing humid air
Light brown coloured
polythene
Easy identification the right product is in situ
Cut to size on site Flexibility to suit site needs
Independent of SV and FV ventilatorsCan be used with any depth of soffit
